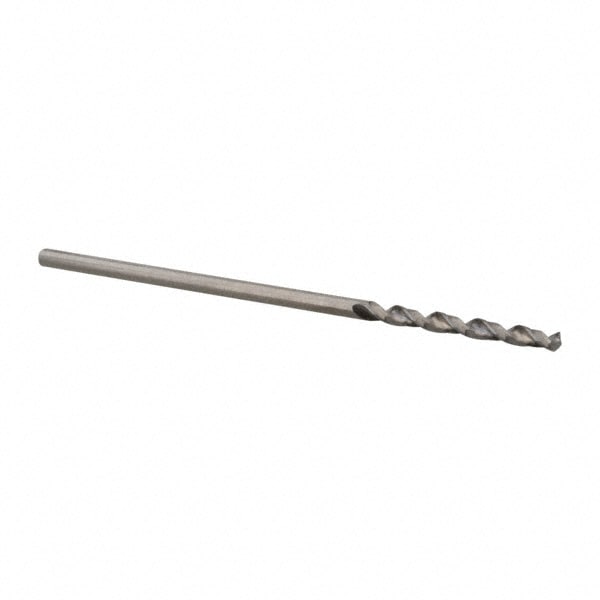

Jobber Drill: 1.01 mm Dia, 130 deg Point, High Speed Steel
Item #: 82447145
Brand: Guhring
Model #: 9002070010100
Product Specifications
| Drill Bit Size (mm) | 1.01 |
| Drill Bit Size (Decimal Inch) | 0.0398 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Fast Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.0398 |
| Overall Length (mm) | 34.00 |
| Overall Length (Decimal Inch) | 1.3386 |
| Spiral Type | Fast |
| Flute Length (mm) | 12.00 |
| Flute Length (Decimal Inch) | 0.4724 |
| Series | 207 |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 0.4130 |
| Maximum Drilling Depth (mm) | 10.49 |
| Shank Length (mm) | 22 |
| Drill Bit Diameter Tolerance | -0.014 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 - 0.0500 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
