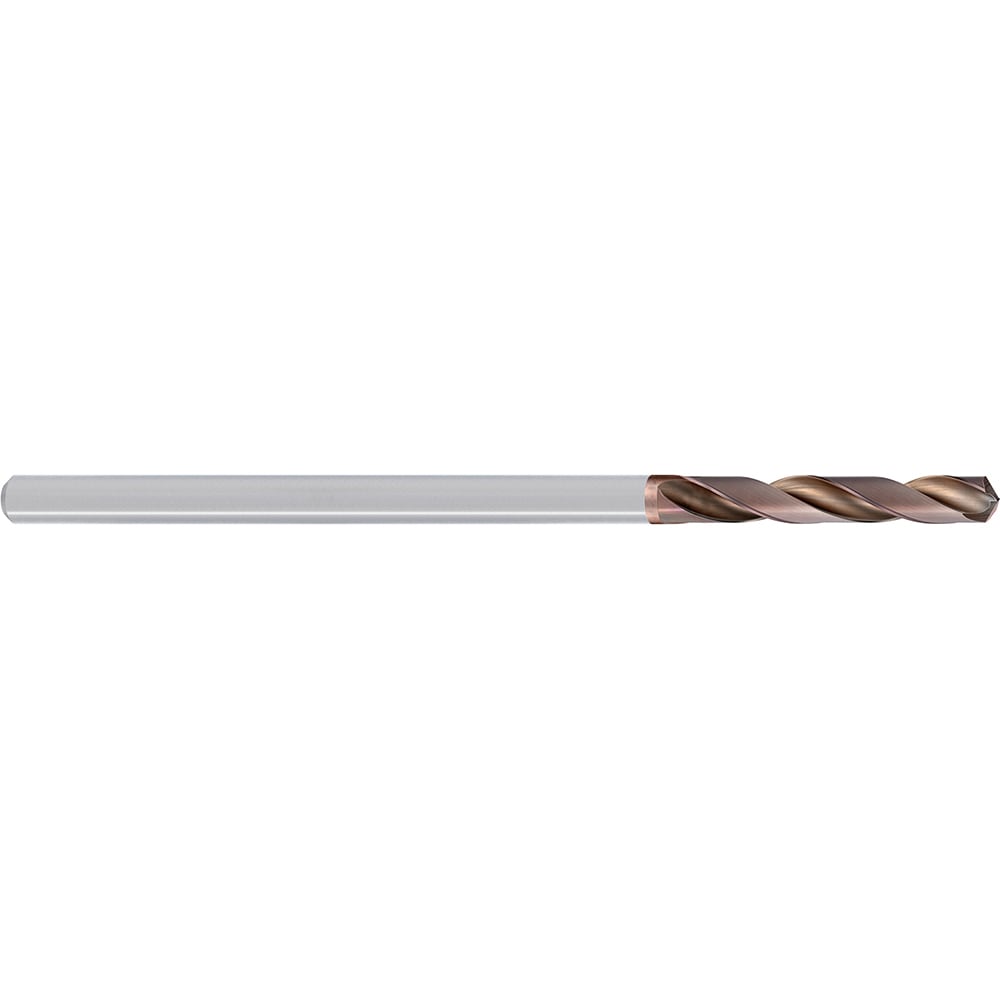

Extra Length Drill Bit: 0.2244", 140 °, Carbide
Item #: 82120338
Brand: Mitsubishi
Model #: 663841
Product Specifications
| Drill Bit Size (mm) | 5.70 |
| Overall Length (mm) | 67.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 29.00 |
| Point Type | X-Thinning |
| Series | MVE |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Bronze; Brass; Carbon Steel; Iron; Steel; High Strength Bronze; Tempered Steel; Hard Material; Stainless Steel; Cast Iron; Structural Steel; Superalloys & Titanium; Nickel; Copper; Nickel Alloy; Hardened Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.2244 |
| Drill Point Length (mm) | 1.00 |
| Drill Point Length (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 2.6378 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.000 |
| Flute Length (Decimal Inch) | 1.1417 |
| Flute By Diameter Ratio | 2xD |
| Maximum Drilling Depth (Decimal Inch) | 0.4882 |
| Maximum Drilling Depth (mm) | 12.40 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Country of Origin | VARIOUS |
