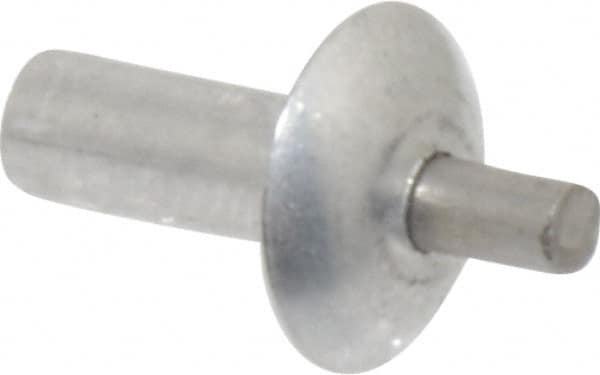

Made in USA - Brazier Head Aluminum Alloy Drive Blind Rivet - Stainless Steel Mandrel, 0.203" to 7/32" Grip, 0.312" Head Diam, 0.128" to 0.14" Hole Diam, 0.313" Length Under Head, 1/8" Body Diam
Item #: 68027408
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Drive rivets have a small mandrel that is driven with a hammer.
Brazier head types have wide, cylindrical heads with shallow profiles. Brazier fasteners are installed blind and commonly used in aircraft.
Aluminum alloy is lightweight and resistant to corrosion.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Drive |
| Head Type | Brazier |
| Rivet Material | Aluminum Alloy |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.2030 |
| Maximum Grip (Decimal Inch) | 0.2340 |
| Maximum Grip (Inch) | 7/32 |
| Head Diameter (Decimal Inch) | 0.3120 |
| Minimum Hole Diameter (Decimal Inch) | 0.1280 |
| Maximum Hole Diameter (Decimal Inch) | 0.1400 |
| Length Under Head (Decimal Inch) | 0.3130 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Rivet Finish/Coating | Passivated (Mandrel); Plain/Uncoated (Rivet) |
| Head Height (Decimal Inch) | 0.0620 |
