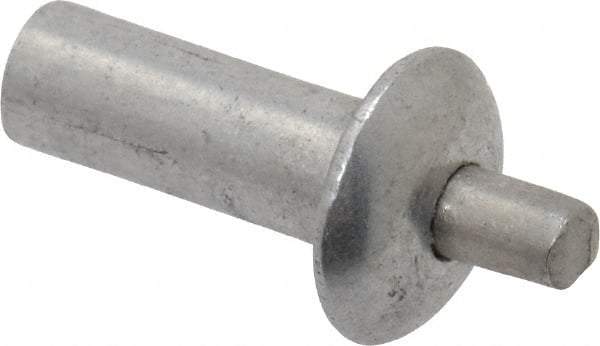

Made in USA - Universal Head Aluminum Alloy Drive Blind Rivet - Stainless Steel Mandrel, 0.234" to 1/4" Grip, 1/4" Head Diam, 0.128" to 0.14" Hole Diam, 0.344" Length Under Head, 1/8" Body Diam
Item #: 68026400
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Drive rivets have a small mandrel that is driven with a hammer.
Universal rivets typically have rounded, domed heads that are protruding rather than countersunk.
Aluminum alloy is lightweight and resistant to corrosion.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Drive |
| Head Type | Universal |
| Rivet Material | Aluminum Alloy |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.2340 |
| Maximum Grip (Decimal Inch) | 0.2660 |
| Maximum Grip (Inch) | 1/4 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1280 |
| Maximum Hole Diameter (Decimal Inch) | 0.1400 |
| Length Under Head (Decimal Inch) | 0.3440 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Rivet Finish/Coating | Passivated (Mandrel); Plain/Uncoated (Rivet) |
| Head Height (Decimal Inch) | 0.0540 |
