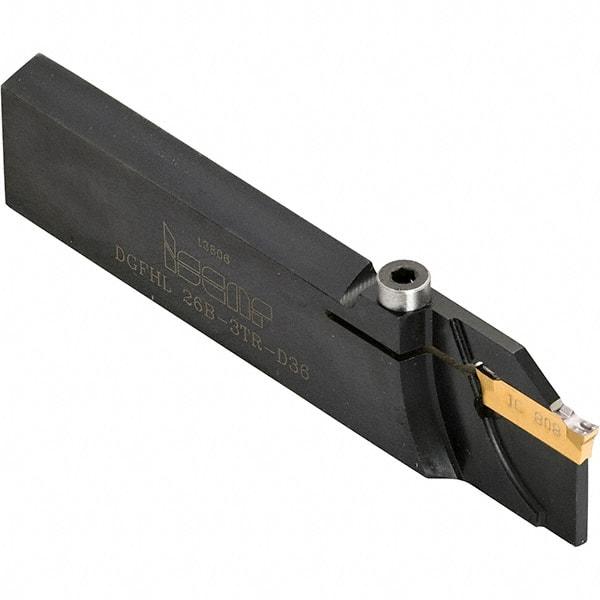

Iscar - 1.9 to 2.5mm Groove Width, Right Hand Cut, DGFHL Indexable Grooving Blade - DGN-P, DGN-UT/UA, DGN-WP, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C, DGR/L-Z/ZS, DGRC/LC-C Insert Style, Series Do-Grip
Item #: 67957431
Brand: Iscar
Model #: 2399644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 1.90 |
| Minimum Groove Width (Decimal Inch) | 0.0748 |
| Blade Style | DGFHL |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 36.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.4173 |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 7.90 |
| Blade Width (Decimal Inch) | 0.3110 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C; DGR/L-Z/ZS; DGRC/LC-C |
| Complete Insert Compatibility | DGN 1000P; DGN 1002J; DGN 2000P; DGN 2002C; DGN 2002JT; DGN 2002Z; DGN 2200JS; DGN 2202C; DGN 2202J; DGN 2202JT; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C; DGR 2000ZS-15D; DGR 2000ZS-6D; DGR 2002Z-15D; DGR 2002Z-6D; DGR/L 2202C-6D |
