Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 1-1/2" Free Length, Yellow Die Spring - 3287 N Max Deflection, 9.5mm Max Deflection, Extra Strong, Chromium Alloy Steel - Benchmark Tooling

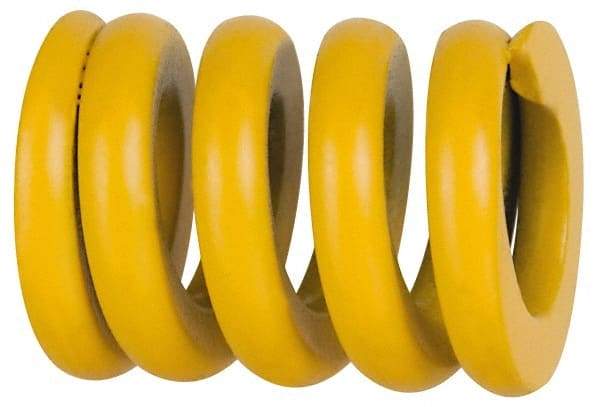

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 1-1/2" Free Length, Yellow Die Spring - 3287 N Max Deflection, 9.5mm Max Deflection, Extra Strong, Chromium Alloy Steel


Item #: 67901843
Brand: Associated Spring Raymond
Model #: 206-506
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 25.00
Rod Diameter (mm) 12.50
Free Length (mm) 38.00
Free Length (Inch) 1-1/2
Load Type Extra Strong
Color Yellow
Maximum Deflection Load (N) 3287.00
Maximum Deflection (mm) 9.50
Travel To Solid Load (mm) 9.50
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$10.77

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
