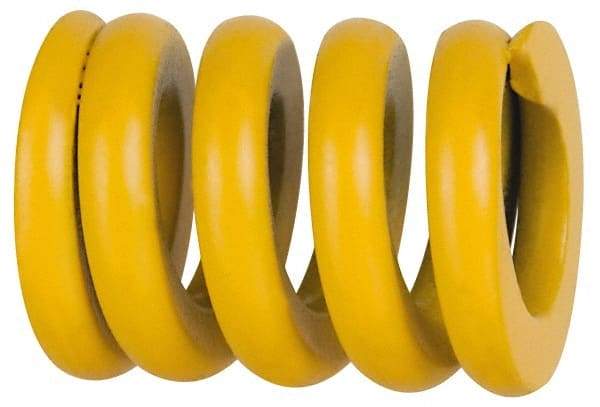

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 1-1/4" Free Length, Yellow Die Spring - 712 N Max Deflection, 8mm Max Deflection, Extra Strong, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 1-1/4" Free Length, Yellow Die Spring - 712 N Max Deflection, 8mm Max Deflection, Extra Strong, Chromium Alloy Steel


Item #: 67901603
Brand: Associated Spring Raymond
Model #: 206-305
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 16.00
Rod Diameter (mm) 8.00
Free Length (mm) 32.00
Free Length (Inch) 1-1/4
Load Type Extra Strong
Color Yellow
Maximum Deflection Load (N) 712.00
Maximum Deflection (mm) 8.00
Travel To Solid Load (mm) 8.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$4.93
