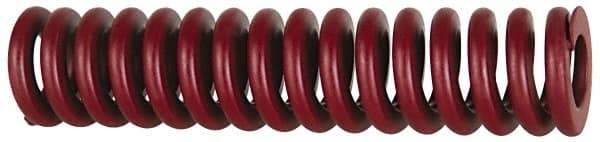

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 4" Free Length, Red Die Spring - 5053 N Max Deflection, 31mm Max Deflection, Strong Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 4" Free Length, Red Die Spring - 5053 N Max Deflection, 31mm Max Deflection, Strong Duty, Chromium Alloy Steel


Item #: 67901215
Brand: Associated Spring Raymond
Model #: 205-716
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 40.00
Rod Diameter (mm) 20.00
Free Length (mm) 102.00
Free Length (Inch) 4
Load Type Strong
Color Red
Maximum Deflection Load (N) 5053.00
Maximum Deflection (mm) 31.00
Travel To Solid Load (mm) 31.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$23.15
