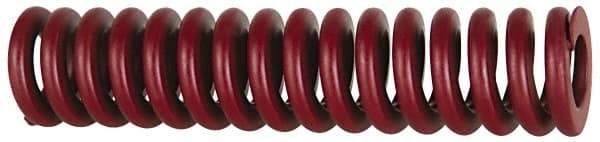

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 152mm Free Length, Red Die Spring - 2198.8 N Max Deflection, 46mm Max Deflection, Strong Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 152mm Free Length, Red Die Spring - 2198.8 N Max Deflection, 46mm Max Deflection, Strong Duty, Chromium Alloy Steel


Item #: 67900985
Brand: Associated Spring Raymond
Model #: 205-524
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 25.00
Rod Diameter (mm) 12.50
Free Length (mm) 152.00
Load Type Strong
Color Red
Maximum Deflection Load (N) 2198.80
Maximum Deflection (mm) 46.00
Travel To Solid Load (mm) 46.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$16.13
