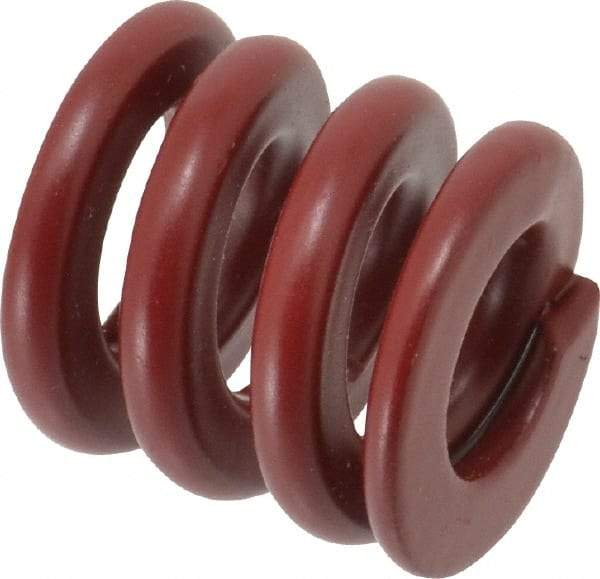

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 1" Free Length, Red Die Spring - 2812.5 N Max Deflection, 7.5mm Max Deflection, Strong Duty, Chromium Alloy Steel
Item #: 67900860
Brand: Associated Spring Raymond
Model #: 205-504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (mm) | 25.00 |
| Free Length (Inch) | 1 |
| Load Type | Strong |
| Color | Red |
| Maximum Deflection Load (N) | 2812.50 |
| Maximum Deflection (mm) | 7.50 |
| Travel To Solid Load (mm) | 7.50 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
