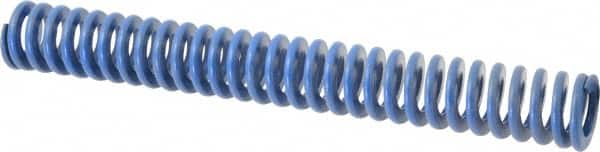

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 12" Free Length, Blue Die Spring - 2804.3999 N Max Deflection, 114mm Max Deflection, Medium Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 12" Free Length, Blue Die Spring - 2804.3999 N Max Deflection, 114mm Max Deflection, Medium Duty, Chromium Alloy Steel


Item #: 67900209
Brand: Associated Spring Raymond
Model #: 204-748
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 40.00
Rod Diameter (mm) 20.00
Free Length (mm) 305.00
Free Length (Inch) 12
Load Type Medium-Duty
Color Blue
Maximum Deflection Load (N) 2804.40
Maximum Deflection (mm) 114.00
Travel To Solid Load (mm) 114.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$54.54
