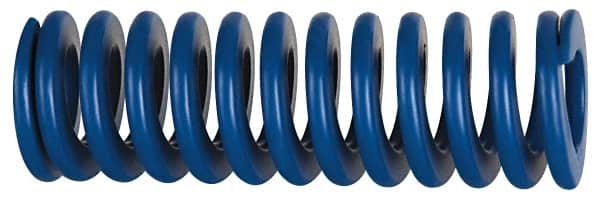

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 3" Free Length, Blue Die Spring - 3024 N Max Deflection, 28mm Max Deflection, Medium Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 3" Free Length, Blue Die Spring - 3024 N Max Deflection, 28mm Max Deflection, Medium Duty, Chromium Alloy Steel


Item #: 67900100
Brand: Associated Spring Raymond
Model #: 204-712
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 40.00
Rod Diameter (mm) 20.00
Free Length (mm) 76.00
Free Length (Inch) 3
Load Type Medium-Duty
Color Blue
Maximum Deflection Load (N) 3024.00
Maximum Deflection (mm) 28.00
Travel To Solid Load (mm) 28.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$17.99
