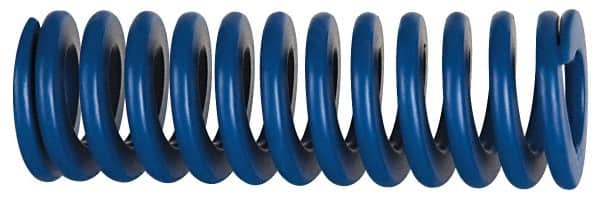

Associated Spring Raymond - 32mm Hole Diam, 16mm Rod Diam, 7" Free Length, Blue Die Spring - 2177.5 N Max Deflection, 67mm Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 67900043
Brand: Associated Spring Raymond
Model #: 204-628
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 32.00 |
| Rod Diameter (mm) | 16.00 |
| Free Length (mm) | 178.00 |
| Free Length (Inch) | 7 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 2177.50 |
| Maximum Deflection (mm) | 67.00 |
| Travel To Solid Load (mm) | 67.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
