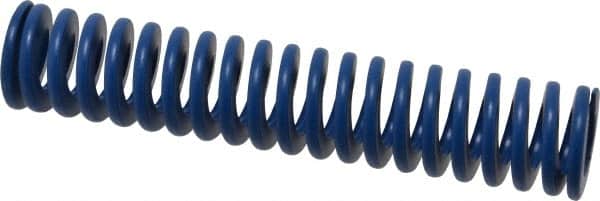

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 5" Free Length, Blue Die Spring - 1243.2 N Max Deflection, 48mm Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 67899872
Brand: Associated Spring Raymond
Model #: 204-520
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 1243.20 |
| Maximum Deflection (mm) | 48.00 |
| Travel To Solid Load (mm) | 48.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
