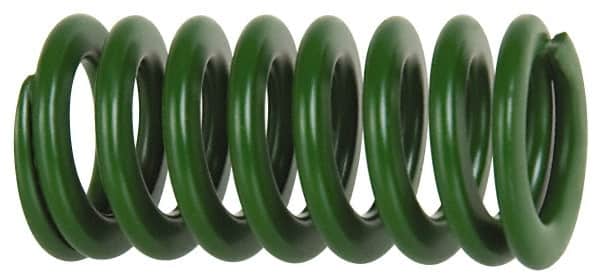

Associated Spring Raymond - 50mm Hole Diam, 25mm Rod Diam, 3" Free Length, Green Die Spring - 3750 N Max Deflection, 30mm Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 50mm Hole Diam, 25mm Rod Diam, 3" Free Length, Green Die Spring - 3750 N Max Deflection, 30mm Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 67899153
Brand: Associated Spring Raymond
Model #: 203-812
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 50.00
Rod Diameter (mm) 25.00
Free Length (mm) 76.00
Free Length (Inch) 3
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 3750.00
Maximum Deflection (mm) 30.00
Travel To Solid Load (mm) 30.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$24.09

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
