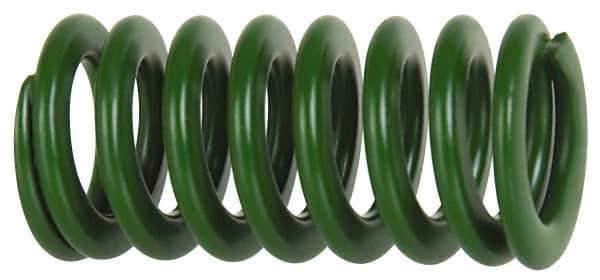

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 152mm Free Length, Green Die Spring - 1708 N Max Deflection, 61mm Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 152mm Free Length, Green Die Spring - 1708 N Max Deflection, 61mm Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 67899096
Brand: Associated Spring Raymond
Model #: 203-724
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 40.00
Rod Diameter (mm) 20.00
Free Length (mm) 152.00
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 1708.00
Maximum Deflection (mm) 61.00
Travel To Solid Load (mm) 61.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$24.23
