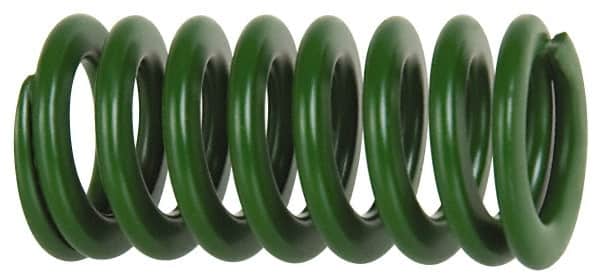

Associated Spring Raymond - 40mm Hole Diam, 20mm Rod Diam, 2-1/2" Free Length, Green Die Spring - 1825 N Max Deflection, 25mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67899021
Brand: Associated Spring Raymond
Model #: 203-710
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 40.00 |
| Rod Diameter (mm) | 20.00 |
| Free Length (mm) | 64.00 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 1825.00 |
| Maximum Deflection (mm) | 25.00 |
| Travel To Solid Load (mm) | 25.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
