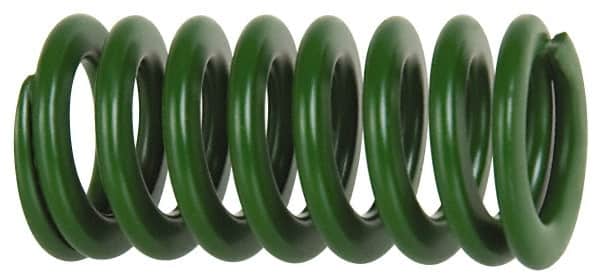

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 7" Free Length, Green Die Spring - 887.5 N Max Deflection, 71mm Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 7" Free Length, Green Die Spring - 887.5 N Max Deflection, 71mm Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 67898833
Brand: Associated Spring Raymond
Model #: 203-528
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 25.00
Rod Diameter (mm) 12.50
Free Length (mm) 178.00
Free Length (Inch) 7
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 887.50
Maximum Deflection (mm) 71.00
Travel To Solid Load (mm) 71.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$15.25
