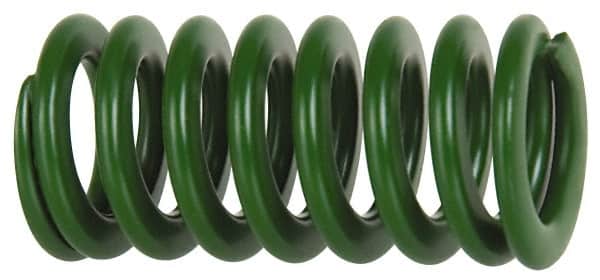

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 5" Free Length, Green Die Spring - 484.5 N Max Deflection, 51mm Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 5" Free Length, Green Die Spring - 484.5 N Max Deflection, 51mm Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 67898668
Brand: Associated Spring Raymond
Model #: 203-420
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 20.00
Rod Diameter (mm) 10.00
Free Length (mm) 127.00
Free Length (Inch) 5
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 484.50
Maximum Deflection (mm) 51.00
Travel To Solid Load (mm) 51.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$9.70
