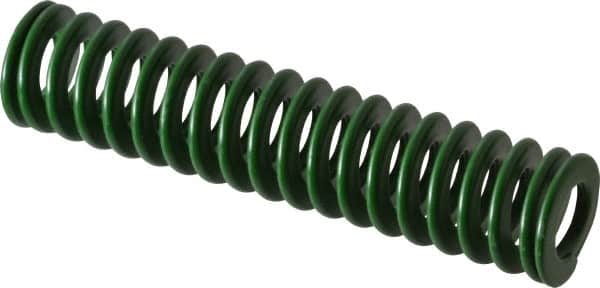

Associated Spring Raymond - 20mm Hole Diam, 10mm Rod Diam, 3-1/2" Free Length, Green Die Spring - 490 N Max Deflection, 35mm Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 67898635
Brand: Associated Spring Raymond
Model #: 203-414
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 20.00 |
| Rod Diameter (mm) | 10.00 |
| Free Length (mm) | 89.00 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 490.00 |
| Maximum Deflection (mm) | 35.00 |
| Travel To Solid Load (mm) | 35.00 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
