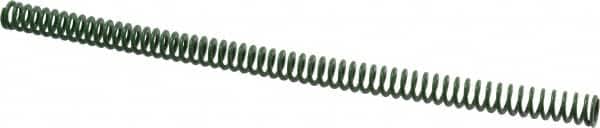

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 12" Free Length, Green Die Spring - 312.5 N Max Deflection, 125mm Max Deflection, Light Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 16mm Hole Diam, 8mm Rod Diam, 12" Free Length, Green Die Spring - 312.5 N Max Deflection, 125mm Max Deflection, Light Duty, Chromium Alloy Steel


Item #: 67898551
Brand: Associated Spring Raymond
Model #: 203-348
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (mm) 16.00
Rod Diameter (mm) 8.00
Free Length (mm) 305.00
Free Length (Inch) 12
Load Type Light-Duty
Color Green
Maximum Deflection Load (N) 312.50
Maximum Deflection (mm) 125.00
Travel To Solid Load (mm) 125.00
Wire Shape Trapezoidal
Material Chromium Alloy Steel
ISO Number 10243
$20.80
