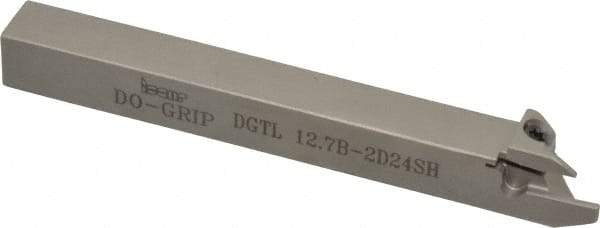

Iscar - External Grooving/Parting, 0.95mm Max Cut of Depth, 0.075" Min Groove Width, 4.7" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, DG. 1../DG. 2.. Insert Style, DGT Toolholder Style, Series Do Grip
Item #: 67878892
Brand: Iscar
Model #: 2301532
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 0.95 |
| Minimum Groove Width (Decimal Inch) | 0.0750 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Overall Length (Decimal Inch) | 4.7000 |
| Series | Do Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG. 1..; DG. 2.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 0.6500 |
| Head Length (Decimal Inch) | 0.7500 |
