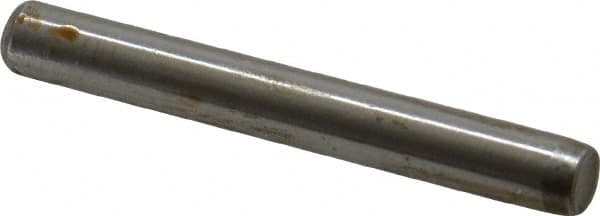

Unbrako - 1/4" Diam x 2" Pin Length Grade 8 Alloy Steel Oversized Dowel Pin - C 60 (Surface) & C 50-58 Hardness, 7,370 Lb Breaking Strength, 1 Beveled & 1 Rounded End
Item #: 67877043
Brand: Unbrako
Model #: 105341
Exact Tooling IR#: 04
Features and Benefits
Oversized types are 0.001 inches larger than standard dowel pins. They are ideal for fastening into out-of-round holes or softer materials.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Type | Oversized |
| Material | Alloy Steel |
| Pin Diameter (Inch) | 1/4 |
| Pin Length (Decimal Inch) | 2.0000 |
| Pin Length (Inch) | 2 |
| Hardness | C 60 (Surface); C 50-58 |
| Fastener Standard | ASME B18.8.2 |
| Material Grade | Grade 8 |
| System of Measurement | Inch |
| Oversize or Undersize Amount (Decimal Inch) | 0.0002 |
| Breaking Strength (Lb.) | 7370.00 |
| End Type | (1) Beveled; (1) Rounded |
| Breaking Strength Measurement | Single Shear |
| Diameter Tolerance (Decimal Inch) | 0.0002 |
