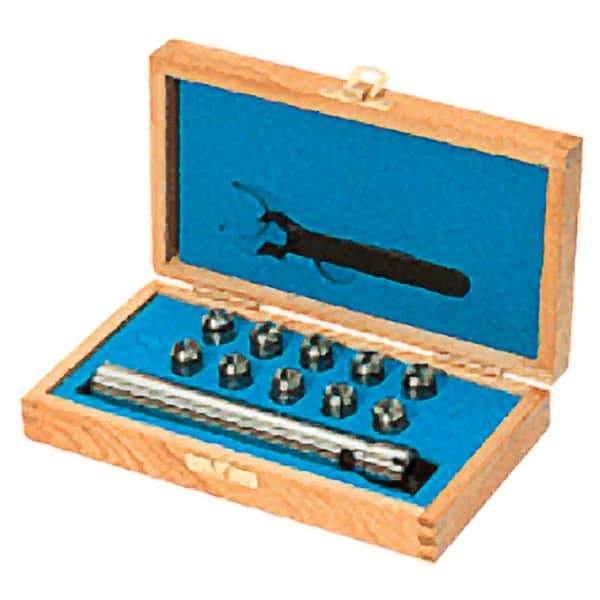

Iscar - 3/4 Inch Shank Diameter, Straight Shank, ER Collet Chuck Set - 0.041 to 0.514 Inch Collet Chuck Capacity, Include 1 Collet Chuck, 12 Collets
Item #: 67852673
Brand: Iscar
Model #: 4500298
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Collets in Set | 12 |
| Collet Chuck Minimum Capacity (Decimal Inch) | 0.0410 |
| Collet Chuck Maximum Capacity (Decimal Inch) | 0.5140 |
| Collet Size (Decimal Inch) | 0.0410-0.0800; 0.0800-0.1200; 0.1200-0.1590; 0.1590-0.1990; 0.1990-0.2380; 0.2380-0.2780; 0.2780-0.3170; 0.3170-0.3560; 0.3560-0.3960; 0.3960-0.4350; 0.4350-0.4740; 0.4740-0.5140 |
| Includes | (1) Collet Chuck; (12) Collets |
| PSC Code | 5136 |
