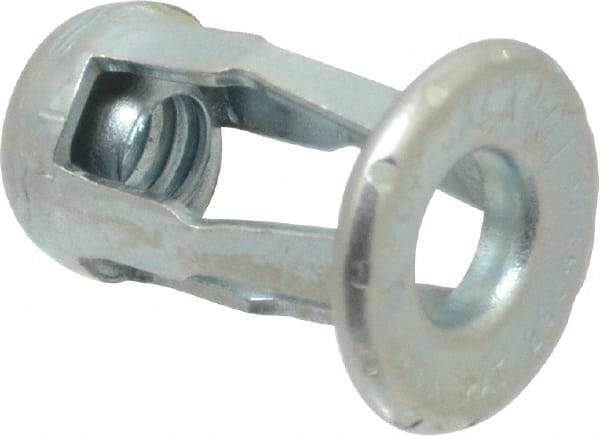

Au-Ve-Co Products - #10-24 UNC Thread, Zinc Plated, Steel, Screwdriver Installed Rivet Nut - 1/64 to 3/16" Grip, 17/32" Flange Diam, 0.716" Long
Item #: 67741280
Brand: Au-Ve-Co Products
Model #: 13014
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #10-24 |
| Minimum Grip (Decimal Inch) | 0.0156 |
| Minimum Grip (Inch) | 1/64 |
| Maximum Grip (Decimal Inch) | 0.1875 |
| Maximum Grip (Inch) | 3/16 |
| Flange Diameter (Decimal Inch) | 0.5310 |
| Flange Thickness (Decimal Inch) | 0.0730 |
| Overall Length (Decimal Inch) | 0.7160 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
| Body Diameter (Decimal Inch) | 0.3820 |
| Thread Standard | UNC |
