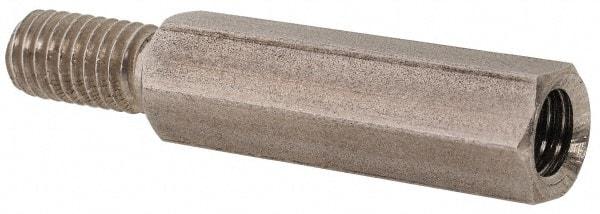

Electro Hardware - #10-32, 1-1/4" OAL, 1/4" Across Flats, Stainless Steel Hex Male/Female Circuit Board Standoffs - 1/2" Thread Depth, 7/8" Body Length, Bright Finish
Item #: 67736603
Brand: Electro Hardware
Model #: 1447M09F16-1032
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Body Shape | Hex |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Thread Size | #10-32 |
| Width Across Flats (Decimal Inch) | 0.2500 |
| Width Across Flats (Inch) | 1/4 |
| Finish/Coating | Bright |
| Body Length (Inch) | 7/8 |
| Body Length (Decimal Inch) | 0.8750 |
| Thread Length (Inch) | 3/8 |
| Thread Depth (Inch) | 1/2 |
| Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Material Grade | 18-8; Grade 303 |
| Fastener Standard | QQ-S-763 |
