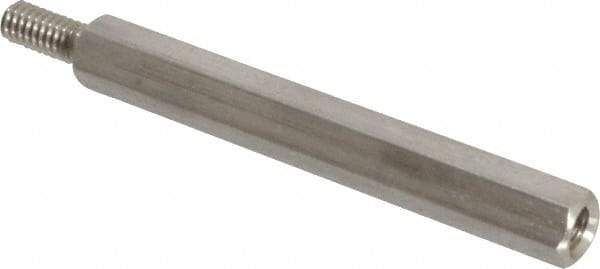

Electro Hardware - #8-32, 2-3/8" OAL, 1/4" Across Flats, Stainless Steel Hex Male/Female Circuit Board Standoffs - 7/16" Thread Depth, 2" Body Length, Bright Finish
Item #: 67736363
Brand: Electro Hardware
Model #: 1483M09F16-832
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Body Shape | Hex |
| Overall Length (Inch) | 2-3/8 |
| Overall Length (Decimal Inch) | 2.3750 |
| Thread Size | #8-32 |
| Width Across Flats (Decimal Inch) | 0.2500 |
| Width Across Flats (Inch) | 1/4 |
| Finish/Coating | Bright |
| Body Length (Inch) | 2 |
| Body Length (Decimal Inch) | 2.0000 |
| Thread Length (Inch) | 3/8 |
| Thread Depth (Inch) | 7/16 |
| Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Material Grade | 18-8; Grade 303 |
| Fastener Standard | QQ-S-763 |
