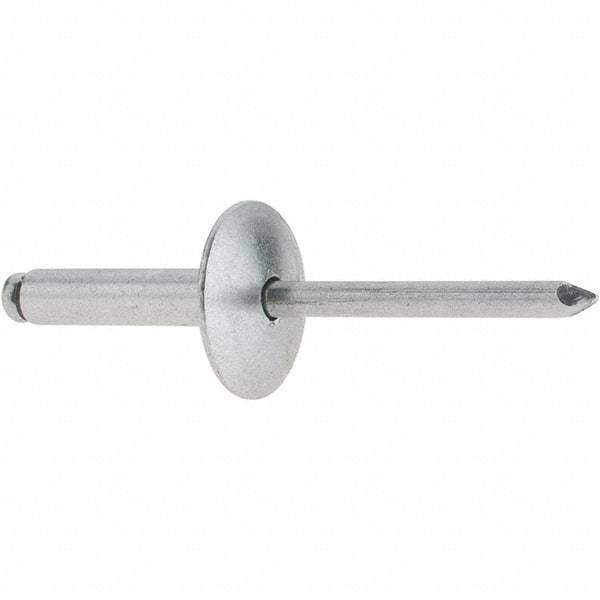

RivetKing - Size 610 Large Flange Dome Head Aluminum Open End Blind Rivet - Aluminum Mandrel, 0.501" to 5/8" Grip, 5/8" Head Diam, 0.192" to 0.196" Hole Diam, 0.825" Length Under Head, 3/16" Body Diam
Item #: 67618686
Brand: RivetKing
Model #: ABA610LF/P250
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange dome head types have domed, cylindrical heads with large flanges. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Large Flange Dome |
| Size Code | 610 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.5010 |
| Maximum Grip (Decimal Inch) | 0.6250 |
| Head Diameter (Decimal Inch) | 0.6250 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Rivet Material Grade | 5052 |
| Drill Size (Wire) | #11 |
| Length Under Head (Decimal Inch) | 0.8250 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 260.00 |
| Tensile Strength (Lb.) | 320.00 |
| Rivet Finish/Coating | Bright |
| Fastener Standard | IFI 114 Grade 11 |
| Head Height (Decimal Inch) | 0.0920 |
