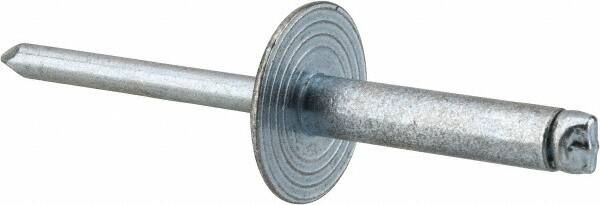

RivetKing - Size 610 Large Flange Dome Head Steel Open End Blind Rivet - Steel Mandrel, 0.501" to 5/8" Grip, 5/8" Head Diam, 0.192" to 0.196" Hole Diam, 0.825" Length Under Head, 3/16" Body Diam
Item #: 67618520
Brand: RivetKing
Model #: SBS610LF/P250
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange dome head types have domed, cylindrical heads with large flanges. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Large Flange Dome |
| Size Code | 610 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.5010 |
| Maximum Grip (Decimal Inch) | 0.6250 |
| Head Diameter (Decimal Inch) | 0.6250 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Drill Size (Wire) | #11 |
| Length Under Head (Decimal Inch) | 0.8250 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 540.00 |
| Tensile Strength (Lb.) | 680.00 |
| Rivet Finish/Coating | Phosphate (Mandrel); Zinc-Plated (Rivet) |
| Fastener Standard | IFI 114 Grade 30 |
| Head Height (Decimal Inch) | 0.0920 |
