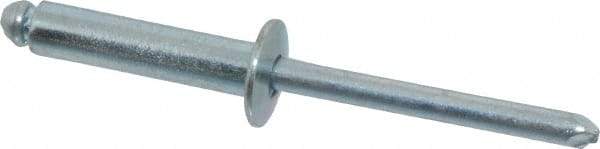

RivetKing - Size 610 Dome Head Steel Open End Blind Rivet - Steel Mandrel, 0.501" to 5/8" Grip, 3/8" Head Diam, 0.192" to 0.196" Hole Diam, 0.825" Length Under Head, 3/16" Body Diam
Item #: 67618082
Brand: RivetKing
Model #: SBS610/P250
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Dome |
| Size Code | 610 |
| Rivet Material | Steel |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.5010 |
| Maximum Grip (Decimal Inch) | 0.6250 |
| Head Diameter (Decimal Inch) | 0.3750 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Drill Size (Wire) | #11 |
| Length Under Head (Decimal Inch) | 0.8250 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Shear Strength (Lb.) | 540.00 |
| Tensile Strength (Lb.) | 680.00 |
| Rivet Finish/Coating | Phosphate (Mandrel); Zinc-Plated (Rivet) |
| Fastener Standard | IFI 114 Grade 30 |
| Head Height (Decimal Inch) | 0.0600 |
