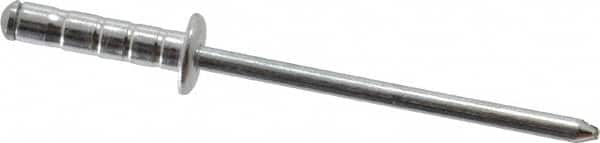

RivetKing - Size 43-45 Dome Head Aluminum Multi Grip Blind Rivet - Steel Mandrel, 0.196" to 0.33" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.586" Length Under Head, 1/8" Body Diam
Item #: 67617084
Brand: RivetKing
Model #: ABS43-45RTP500
Exact Tooling IR#: 04
Features and Benefits
Multi grip rivets have a wide grip range to ensure the hole is completely filled. They are ideal for oversized, misaligned or oddly shaped holes.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Multi Grip |
| Head Type | Dome |
| Size Code | 43-45 |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.1960 |
| Maximum Grip (Decimal Inch) | 0.3300 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.5860 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Shear Strength (Lb.) | 122.00 |
| Tensile Strength (Lb.) | 176.00 |
| Rivet Finish/Coating | Zinc-Plated (Mandrel) |
| Head Height (Decimal Inch) | 0.0430 |
