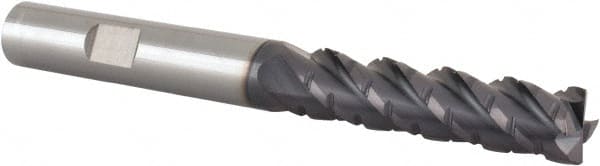

ProMax - 3/8" Diam 4-Flute 40° Solid Carbide 0.02" Corner Radius Roughing & Finishing End Mill
Item #: 67557355
Brand: ProMax
Model #: 120-02434
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1-1/2 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Center Cutting |
| Extended Reach | NonExtendedReach |
| Helix Angle | 40 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.003 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Series/List | 120 |
