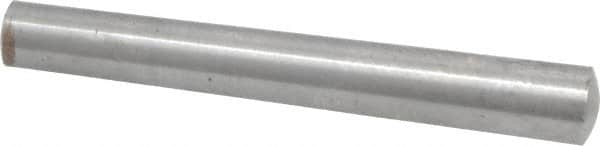

Value Collection - Size 7, 0.3466" Small End Diam, 0.409" Large End Diam, Uncoated Steel Taper Pin - Grade C-12L14, 3" OAL, 3 Pin Length
Item #: 67551960
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Taper pins create a stop or wedge in machinery and are used when frequent assembly and disassembly are required. One end of the pin is slightly larger in diameter than the other, which results in a uniform taper for simple, effective fastening.
| Product Specifications | |
|---|---|
| Type | Taper Pin |
| System of Measurement | Inch |
| Taper Pin Size | 7 |
| Pin Length (Inch) | 3 |
| Pin Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Small End Diameter (Decimal Inch) | 0.3466 |
| Large End Diameter (Decimal Inch) | 0.4090 |
| Material | Steel |
| Material Grade | C-12L14 |
| Finish/Coating | Uncoated |
| Taper Per Foot (Inch) | 1/4 |
| Minimum Diameter Tolerance (Decimal Inch) | -0.0007 |
| Maximum Diameter Tolerance (Decimal Inch) | 0.0013 |
| Fastener Standard | ANSI/ASME B18.8.2 |
