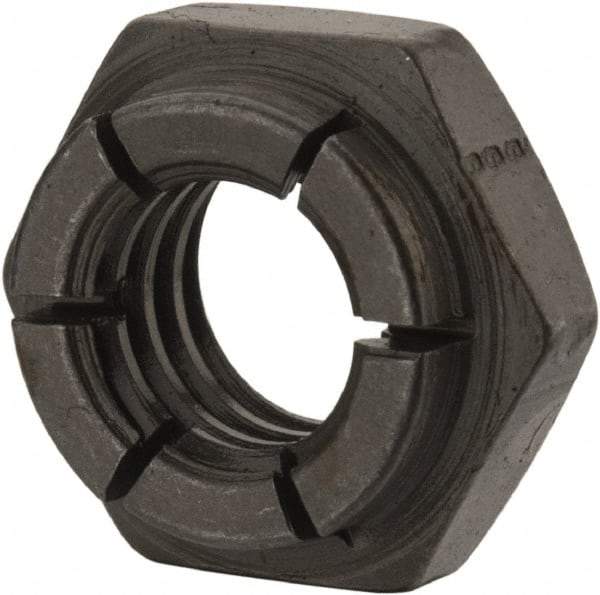

Flex-Loc - 3/8-16 UNC Grade 2 Heavy Hex Lock Nut with Expanding Flex Top - 9/32" High, Uncoated, Meets Military Specifications
Item #: 67515445
Brand: Flex-Loc
Model #: 20FK-616
Exact Tooling IR#: 04
Features and Benefits
Heavy hex lock nuts have thicker heads than standard hex nuts. They are used with large-diameter, high-strength bolts.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Heavy Hex Lock Nut |
| Material | Steel |
| Thread Size | 3/8-16 |
| Height (Inch) | 9/32 |
| Height (Decimal Inch) | 0.2813 |
| Material Grade | Grade 2 |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Locking Style | Expanding Flex Top |
| Flange Diameter (Decimal Inch) | 0.6160 |
| Width Across Flats (Decimal Inch) | 0.6270 |
| Thread Standard | UNC |
| Thread Fit Class | 2B |
| Fastener Standard | MIL-S-7742 |
| Military Specification | Meets Military Specifications |
