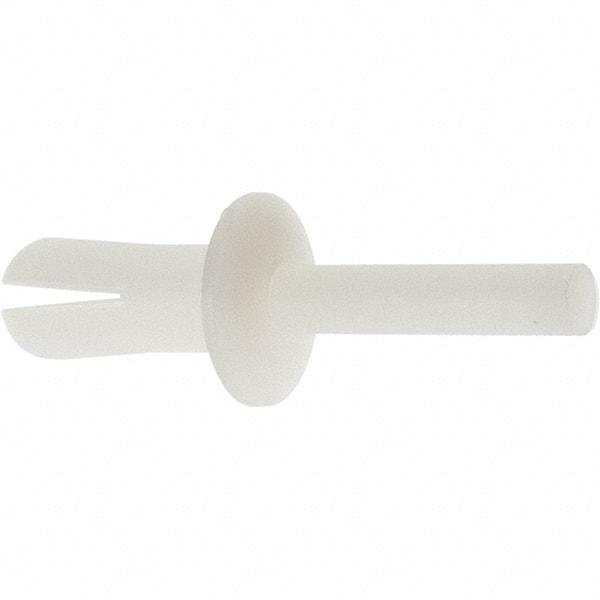

Made in USA - Truss Head Nylon Push Mount Blind Rivet - Nylon Mandrel, 0.281" to 1/2" Grip, 0.468" Head Diam, 1/4" Max Hole Diam, 0.62" Length Under Head, 0.15" Body Diam
Item #: 67355289
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Push-mount rivets snap into holes using only a finger. They have legs that expand to secure materials and then release when the head is pulled.
Truss head types have low-profile heads that are slightly rounded. They have flat bearing surfaces that prevent pull-through and are ideal for low-clearance applications.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Push Mount |
| Head Type | Truss |
| Rivet Material | Nylon |
| Mandrel Material | Nylon |
| Minimum Grip (Decimal Inch) | 0.2810 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Head Diameter (Decimal Inch) | 0.4680 |
| Minimum Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Hole Diameter (Decimal Inch) | 0.2500 |
| Length Under Head (Decimal Inch) | 0.6200 |
| Body Diameter (Decimal Inch) | 0.1500 |
| Head Height (Decimal Inch) | 0.0800 |
