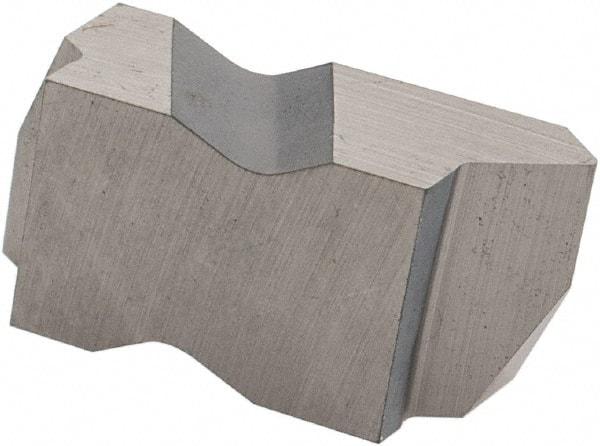

Kennametal - NJF3009 Grade K68, External UNJ Threading Insert - 18 TPI Ext Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 67246587
Brand: Kennametal
Model #: 1113477
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NJF |
| Insert Size | 3009 |
| Thread Type | External |
| Insert Hand | Right Hand |
| Thread Standard | UNJ |
| Material Grade | C3 |
| Manufacturer's Grade | K68 |
| External Pitch/TPI | 18 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Corner Radius (mm) | 0.22 |
| Corner Radius (Decimal Inch) | 0.0087 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Rake | Neutral |
| Tip to Top of Insert (mm) | 3.58 |
| Tip to Top of Insert (Decimal Inch) | 0.1409 |
