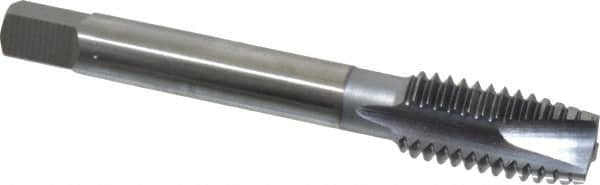

OSG - 1/2-13 UNC, 3 Flute, TiCN Finish, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 3-3/8" OAL, 2" Thread Length, 3B Class of Fit, Series 105
Item #: 67199877
Brand: OSG
Model #: 1232408
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Finish/Coating | TiCN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Inch) | 3-3/8 |
| Thread Standard | UNC |
| Thread Length (Inch) | 2 |
| Series/List | 105 |
