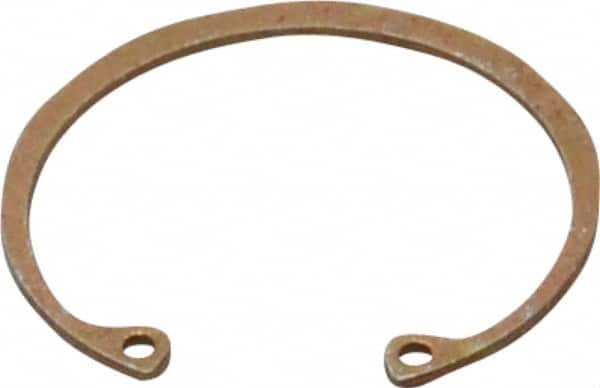

Rotor Clip - 0.05" Thick, Zinc Yellow Dichromate Finish, Steel Snap Internal Retaining Ring - 0.056" Groove Width, 0.047" Groove Depth, 1.594" Groove Diam, Grade 1060-1090
Item #: 67156927
Brand: Rotor Clip
Model #: HO-150ST ZD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-1/2 |
| Bore Diameter (Decimal Inch) | 1.5000 |
| Bore Diameter (mm) | 38.10 |
| Groove Diameter (Decimal Inch) | 1.5940 |
| Groove Width (Decimal Inch) | 0.0560 |
| Free Outside Diameter (Decimal Inch) | 1.6600 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0470 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 10708 (Ring Safety Factor); 6000 (Groove Safety Factor) |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
