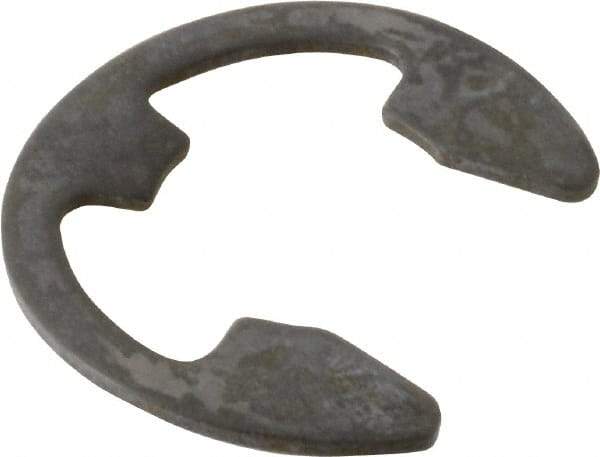

Rotor Clip - 0.58" Groove Diam, 3/4" Shaft Diam, Phosphate Steel, Bowed E Style External Retaining Rings - 0.085" Groove Width, 0.085" Groove Depth, 0.05" Ring Thickness, Grade 1060-1090
Item #: 67155523
Brand: Rotor Clip
Model #: BE-75ST PA
Exact Tooling IR#: 04
Features and Benefits
Bowed E-style external retaining rings are a curved variation of E-style retaining rings. They are used to adjust tolerance once snapped onto the outside of a shaft.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Bowed E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 19.05 |
| Shaft Diameter (Inch) | 3/4 |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Groove Diameter (Decimal Inch) | 0.5800 |
| Free Diameter (Decimal Inch) | 0.5740 |
| Free Outside Diameter (Decimal Inch) | 1.1200 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0850 |
| Groove Depth (Decimal Inch) | 0.0850 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Minimum Bow Height (Decimal Inch) | 0.0900 |
| Maximum Bow Height (Decimal Inch) | 0.1100 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.005 to 0.003 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
