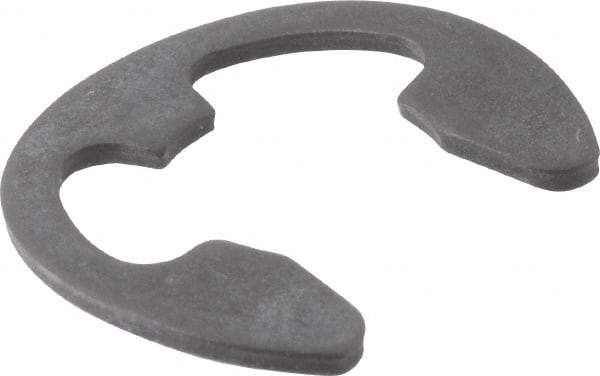

Rotor Clip - 0.396" Groove Diam, 1/2" Shaft Diam, Phosphate Steel, Bowed E Style External Retaining Rings - 0.073" Groove Width, 0.052" Groove Depth, 0.042" Ring Thickness, Grade 1060-1090
Item #: 67155440
Brand: Rotor Clip
Model #: BE-50ST PA
Exact Tooling IR#: 04
Features and Benefits
Bowed E-style external retaining rings are a curved variation of E-style retaining rings. They are used to adjust tolerance once snapped onto the outside of a shaft.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Bowed E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 12.70 |
| Shaft Diameter (Inch) | 1/2 |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Groove Diameter (Decimal Inch) | 0.3960 |
| Free Diameter (Decimal Inch) | 0.3920 |
| Free Outside Diameter (Decimal Inch) | 0.8000 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0730 |
| Groove Depth (Decimal Inch) | 0.0520 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Minimum Bow Height (Decimal Inch) | 0.0750 |
| Maximum Bow Height (Decimal Inch) | 0.0930 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.004 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 47-52 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
