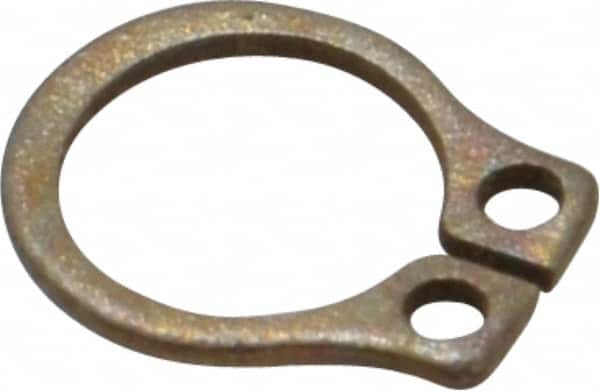

Rotor Clip - 0.23" Groove Diam, 1/4" Shaft Diam, Zinc Yellow Dichromate Steel, Snap External Retaining Rings - 0.029" Groove Width, 0.01" Groove Depth, 0.025" Ring Thickness, Grade 1060-1090
Item #: 67152801
Brand: Rotor Clip
Model #: SH-25ST ZD
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 6.35 |
| Shaft Diameter (Inch) | 1/4 |
| Shaft Diameter (Decimal Inch) | 0.2500 |
| Groove Diameter (Decimal Inch) | 0.2300 |
| Free Diameter (Decimal Inch) | 0.2250 |
| Free Outside Diameter (Decimal Inch) | 0.4500 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Zinc Yellow Dichromate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0290 |
| Groove Depth (Decimal Inch) | 0.0100 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0015 to 0.0015 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.004 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 69.5-73 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
