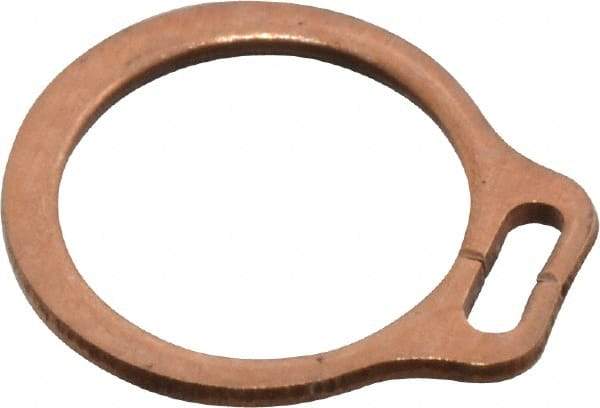

Rotor Clip - 0.175" Groove Diam, 3/16" Shaft Diam, Zinc-Plated Beryllium Copper, Snap External Retaining Rings - 0.018" Groove Width, 0.006" Groove Depth, 0.015" Ring Thickness
Item #: 67152769
Brand: Rotor Clip
Model #: SH-18BC B100
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Beryllium copper is the strongest of all copper alloys. It is nonmagnetic and resistant to some acids.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 4.76 |
| Shaft Diameter (Inch) | 3/16 |
| Shaft Diameter (Decimal Inch) | 0.1875 |
| Groove Diameter (Decimal Inch) | 0.1750 |
| Free Diameter (Decimal Inch) | 0.1680 |
| Free Outside Diameter (Decimal Inch) | 0.2980 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Beryllium Copper |
| Finish/Coating | Zinc-Plated |
| Groove Width (Decimal Inch) | 0.0180 |
| Groove Depth (Decimal Inch) | 0.0060 |
| Ring Thickness (Decimal Inch) | 0.0150 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0015 to 0.0015 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.002 |
| Free Diameter Tolerance (Decimal Inch) | -0.004 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.001 to 0.001 |
| Hardness | Rockwell 15N 77-82 |
| Fastener Standard | ASTM B197; UNC C17200 |
