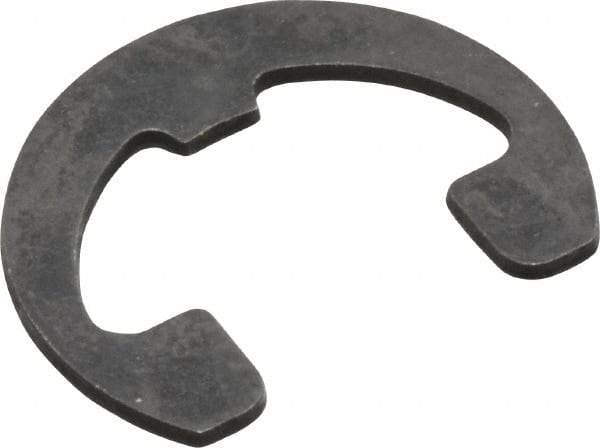

Rotor Clip - 7/16" Groove Diam, 9/16" Shaft Diam, Phosphate Steel, Reinforced E Style External Retaining Rings - 0.046" Groove Width, 0.062" Groove Depth, 0.042" Ring Thickness, Grade 1060-1090
Item #: 67152686
Brand: Rotor Clip
Model #: RE-56ST PA B100
Exact Tooling IR#: 04
Features and Benefits
Reinforced E-style external retaining rings are stronger than standard E-styles. They snap into grooves from the side of a shaft and are ideal for use on small-diameter shafts. Reinforced E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Reinforced E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 14.29 |
| Shaft Diameter (Inch) | 9/16 |
| Shaft Diameter (Decimal Inch) | 0.5625 |
| Groove Diameter (Decimal Inch) | 0.4370 |
| Free Diameter (Decimal Inch) | 0.4300 |
| Free Outside Diameter (Decimal Inch) | 0.8700 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0460 |
| Groove Depth (Decimal Inch) | 0.0620 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.004 to 0.004 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 34-43 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
