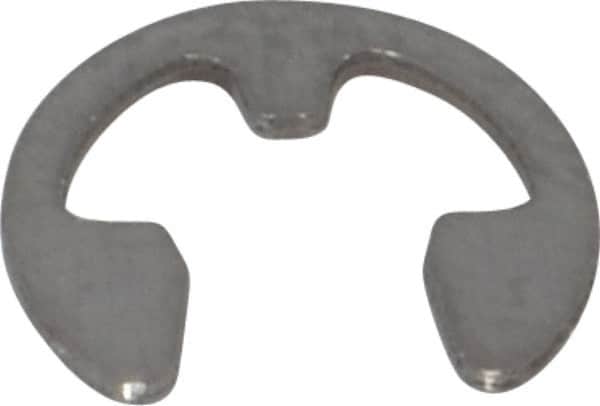

Rotor Clip - 0.147" Groove Diam, 3/16" Shaft Diam, Stainless Steel, E Style External Retaining Rings - 0.029" Groove Width, 0.02" Groove Depth, 0.025" Ring Thickness, Grade 15-7 Grade 632
Item #: 67151365
Brand: Rotor Clip
Model #: E-18SS B100
Exact Tooling IR#: 04
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 4.76 |
| Shaft Diameter (Inch) | 3/16 |
| Shaft Diameter (Decimal Inch) | 0.1875 |
| Groove Diameter (Decimal Inch) | 0.1470 |
| Free Diameter (Decimal Inch) | 0.1450 |
| Free Outside Diameter (Decimal Inch) | 0.3350 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0290 |
| Groove Depth (Decimal Inch) | 0.0200 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.003 to 0.001 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | AMS-5529; UNS S15700 |
