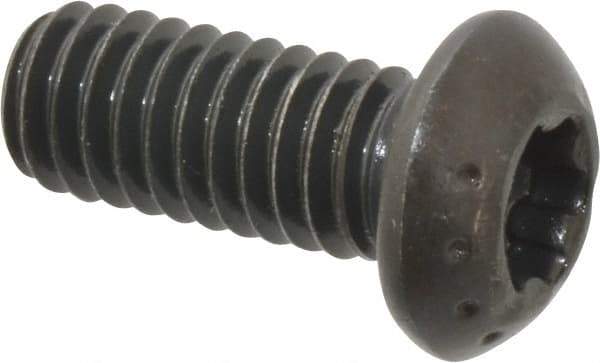

Camcar - 5/16-18 UNC Torx Plus Drive, Button Screw - Alloy Steel, Black Oxide Finish, Fully Threaded, 3/4" Length Under Head
Item #: 67122127
Brand: Camcar
Model #: 34212
Exact Tooling IR#: 04
Features and Benefits
Button head types have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Torx Plus fasteners require Torx Plus drivers to achieve full torque. Standard Torx drivers can also be used to tighten and loosen fasteners but will not achieve the same torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Button |
| Drive Type | Torx Plus |
| Thread Size (Inch) | 5/16-18 |
| Length Measurement Type | Length Under Head |
| Length (Inch) | 3/4 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | UNC |
| Fastener Standard | ANSI B18.8.2; ANSI B2.2; ANSI B18.3; MS16555 |
| Torx Drive Size | T40 |
