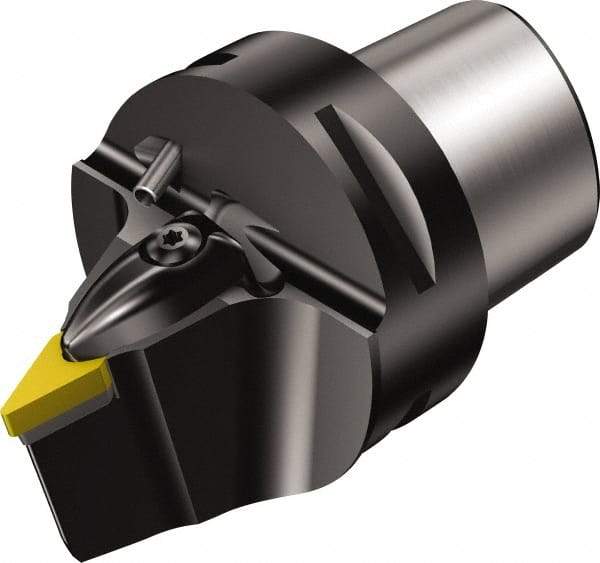

Sandvik Coromant - Neutral, C4 VNMG 332 Modular Turning and Profiling Cutting Unit Head - Wedge Clamp Holding Method, 5.984 Inch Hole Diameter, Through Coolant
Item #: 66961541
Brand: Sandvik Coromant
Model #: 5728300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 62.00 |
| Head Length/Projection (Decimal Inch) | 2.4409 |
| Insert Style | VNMG 332 |
| Center to Cutting Edge (mm) | 0.60 |
| Center to Cutting Edge (Decimal Inch) | 0.0236 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 152.00 |
| Minimum Hole Diameter (Decimal Inch) | 5.9840 |
| Complete Insert Compatibility | VNMG 16 04 08 |
