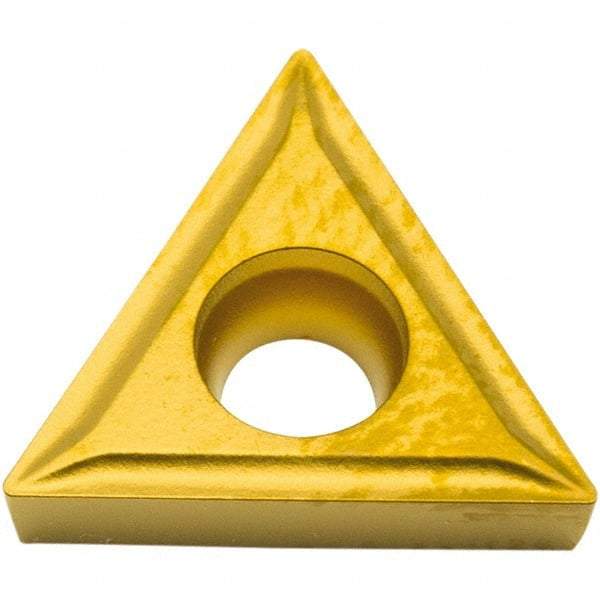

Parlec - Boring Inserts Material: Polycrystalline Diamond (PCD) Insert Style: TPGH
Item #: 66821281
Brand: Parlec
Model #: TP111600PCD
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
Product Specifications
Boring Inserts; Material: Polycrystalline Diamond (PCD) ; Insert Style: TPGH ; Insert Size: 111600 ; Manufacturer's Grade: PCD20 ; Inscribed Circle (Inch): 1/4 ; Inscribed Circle (Decimal Inch): 0.2500
| Material | Polycrystalline Diamond (PCD) |
| Insert Style | TPGH |
| Insert Size | 111600 |
| Manufacturer's Grade | PCD20 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Width (mm) | 11.00 |
| Width (Decimal Inch) | 0.4330 |
| Rake | Positive |
| Insert Holding Method | Screw |
| Shape | Triangle |
