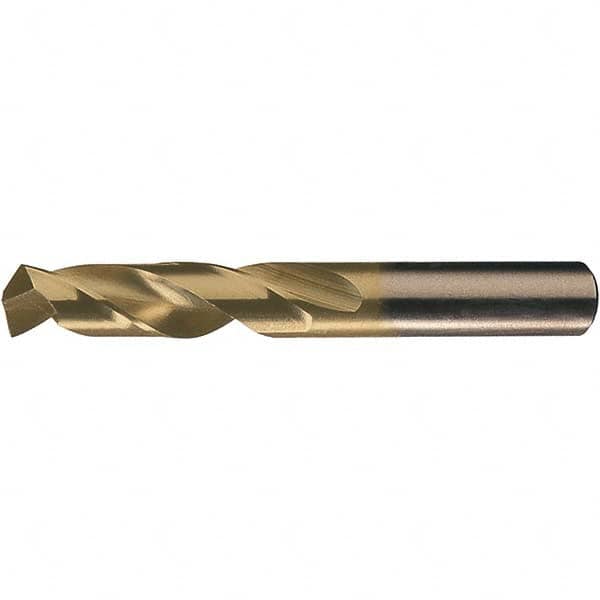

Chicago-Latrobe - 19/64" 135° Spiral Flute Cobalt Screw Machine Drill Bit
Item #: 57631061
Brand: Chicago-Latrobe
Model #: 51816
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Drill Bit Size (Inch) | 19/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 39.69 |
| Flute Length (Decimal Inch) | 1.5625 |
| Overall Length (mm) | 69.85 |
| Overall Length (Decimal Inch) | 2.7500 |
| Point Type | P3 Split Point |
| Shank Diameter (mm) | 7.54 |
| Shank Diameter (Decimal Inch) | 0.2969 |
| Specification Designation | DIN |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 30.16 |
| Shank Length (Decimal Inch) | 1.1874 |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Drill Tip Finish/Coating | None |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy Duty |
| Series/List | 559 |
| Length Type | Regular |
