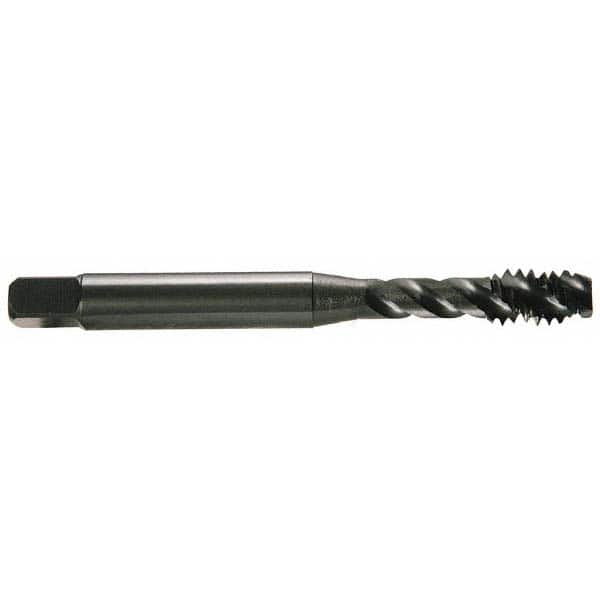

OSG - 5/16-18 UNC 3 Flute Modified Bottoming Spiral Flute Tap
Item #: 66739509
Brand: OSG
Model #: 2941108
Product Specifications
| Thread Size (Inch) | 5/16-18 |
| Chamfer | Modified Bottoming |
| Thread Limit | H11 |
| Number of Flutes | 3 |
| Material | Vanadium High Speed Steel |
| Finish/Coating | TICN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 2-23/32 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Oversize | Yes |
| Thread Length (Inch) | 1-1/8 |
| Flute Type | Fast Spiral |
| Series/List | 290 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Material Application | Alloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel |
