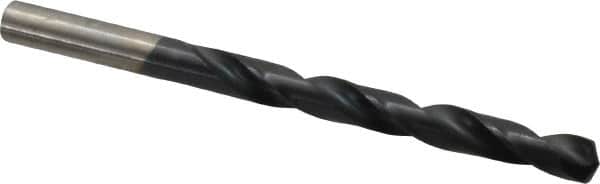

Hertel - 21/64" 135° High Speed Steel Jobber Drill - TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-5/8" OAL, Split Point
Item #: 66692484
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 21/64 |
| Drill Bit Size (Decimal Inch) | 0.3281 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-5/16 |
| Overall Length (Inch) | 4-5/8 |
| Point Type | Split Point |
| Shank Diameter (Decimal Inch) | 0.3281 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | Heavy-Duty |
